About PandaSolar solar tile roof solar mounting brackets:
Tripod mounting structure, Aluminum alloy L feet are usually fixed to trapezoidal metal roofs with self-tapping screws. This solar structure is prevalent in Southeast Asia and Europe, and can be used for both residential and commercial installations.
For complete Metal Roof Solar Mount Racking System the necessary part: solar L feet, solar aluminum rails, solar rail splice, solar end clamp, solar middle clamp, grounding earth/grounding clip , etc..

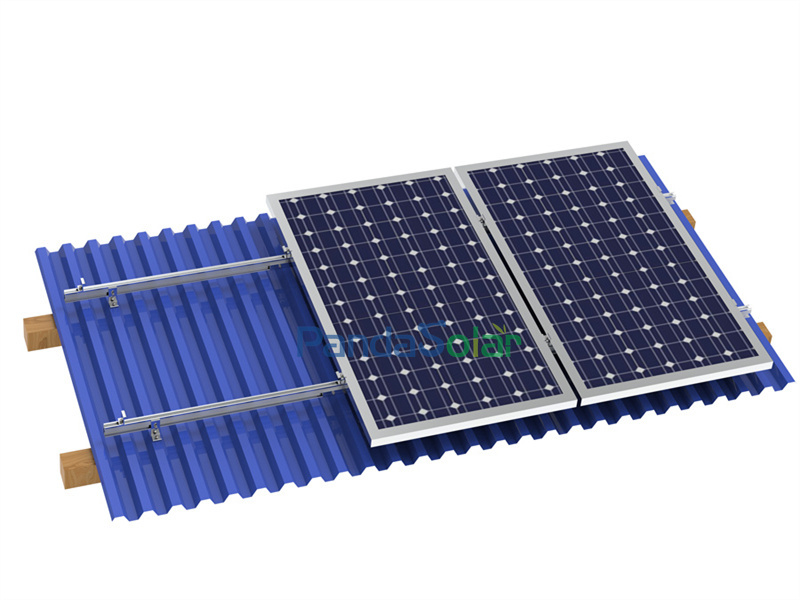

Installation Diagram

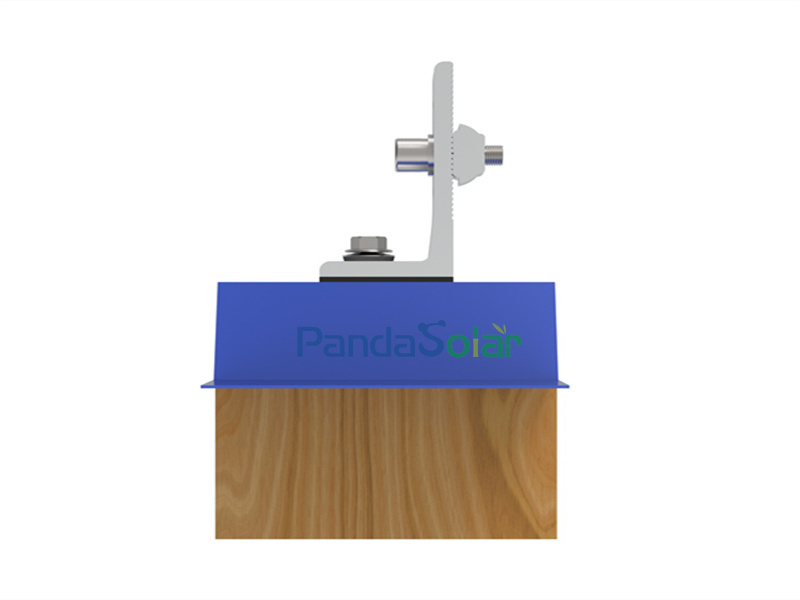

The Metal Roof Mounting Structure

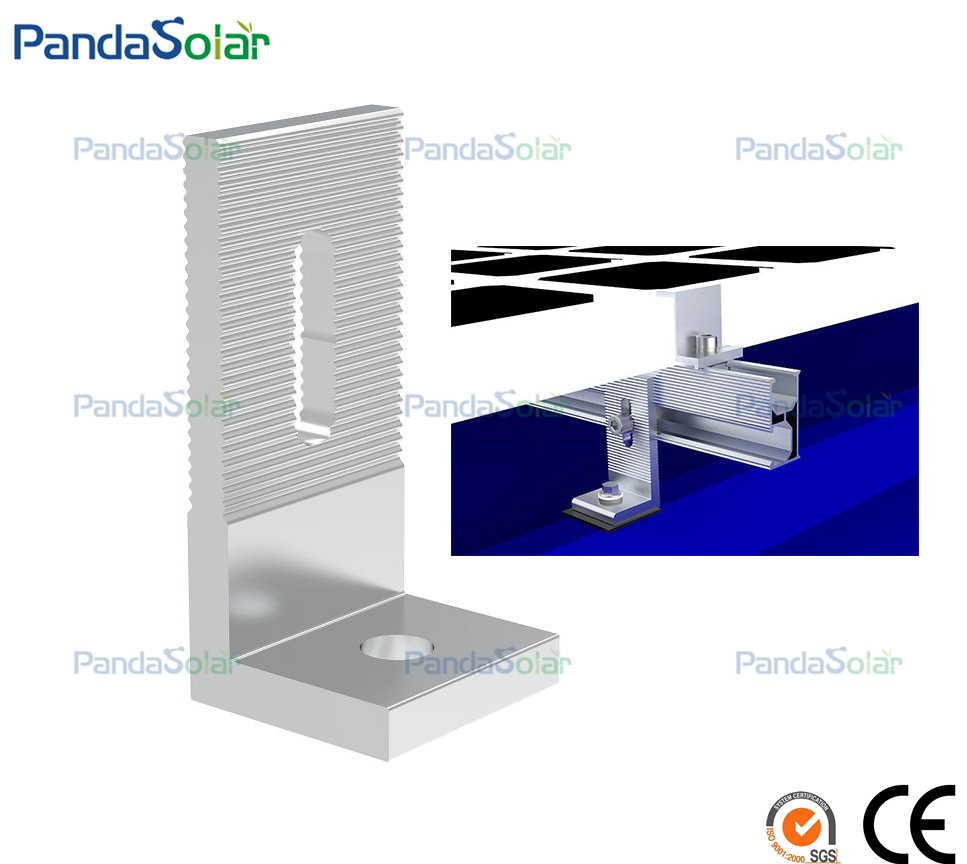

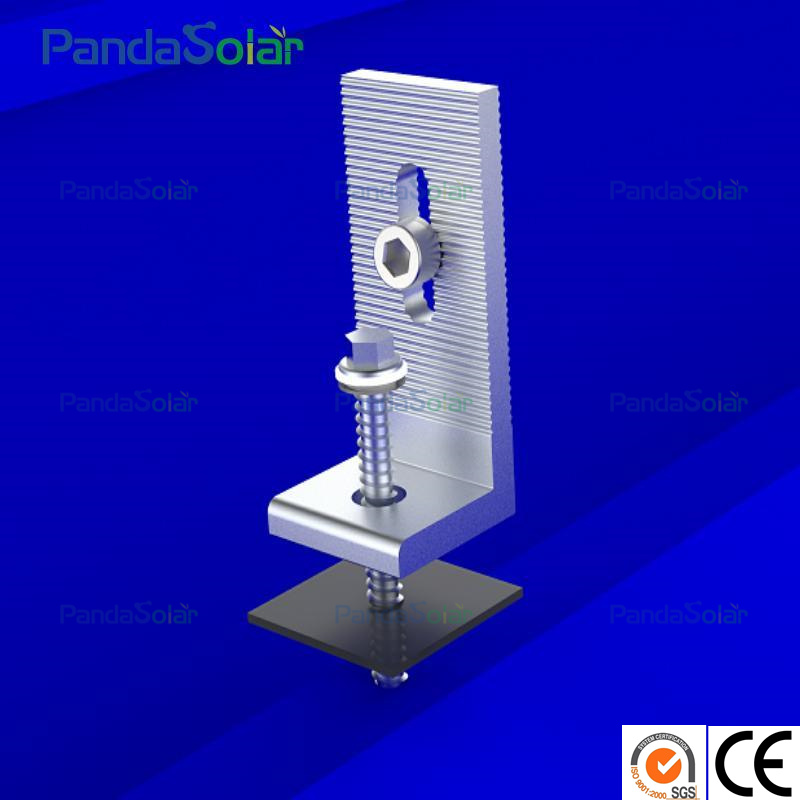

- First -Fix the solar L feet
- The bolts connected to the solar L feet and solar ralis

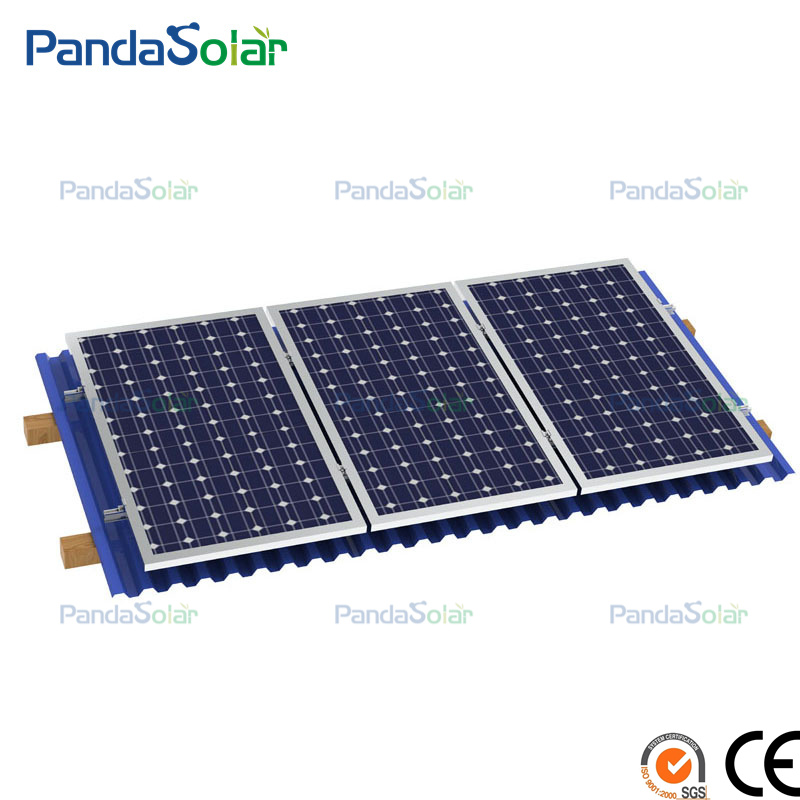

- Put the solar panels and fixed with mid clamp end clamp,then finish the install
Our Advantages:
- Simple structure
- Easy installation
- Long sevice life
- Anodizing corrosion resistanc
- Natural or black

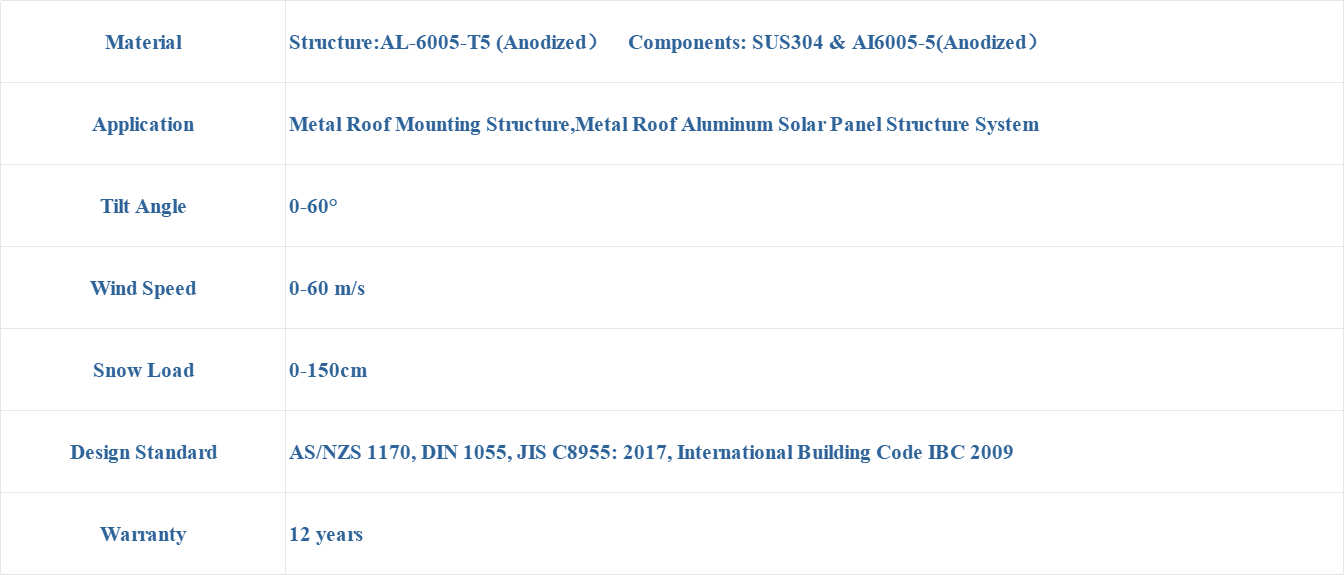

Material
|
Structure:AL-6005-T5 (Anodized) Components: SUS304 & AI6005-5(Anodized)
|
Application
|
Metal Roof Mounting Structure,Metal Roof Aluminum Solar Panel Structure System
|
Tilt Angle
|
0-60°
|
Wind Speed
|
0-60 m/s
|
Snow Load
|
0-150cm
|
Design Standard
|
AS/NZS 1170, DIN 1055, JIS C8955: 2017, International Building Code IBC 2009
|
Warranty
|
12 years
|
Certificates
All products of pandasolar: SOLAR MOUNTING BRACKET SYSTEM / SOLAR MOUNTING HOOKS / SOLAR MOUNTING CLAMP/ SOLAR ROOF MOUNTING have passed CE certification and can be sold in the European market smoothly.
FAQ:
♥: What's your delivery time?
A: 7-15days, for customized product the lead time will be longer, about 25 days, because of making new model. Urgent order is accelerated production.
♥: Can you send the samples?
A: Yes, we provide free samples for your test.
♥: How do you ship the goods and how long does it take to arrive?
A:For sample package, we usually ship by DHL or FedEx. It will take 3-5 days to arrive. For big orders, we usually ship by sea, it will take 7~30 days to arrive, depends on distance.
♥: Are you manufacturer?
A: Yes, we have own factory located in Xiamen China and our production experience is more than 12 years.
♥: Do you have OEM service?
A: Yes, we accept OEM service.
♥: How can I get the best price?
A: Send an inquiry to us and our experts will offer a satisfactory quotation to you according to your requirement.
♥: How about your after-sale?
A:We will be responsible for any complaints from our customers (response immediately when we received it, within 3 hours) and would like to help our customers to solve any problems what they meet.
