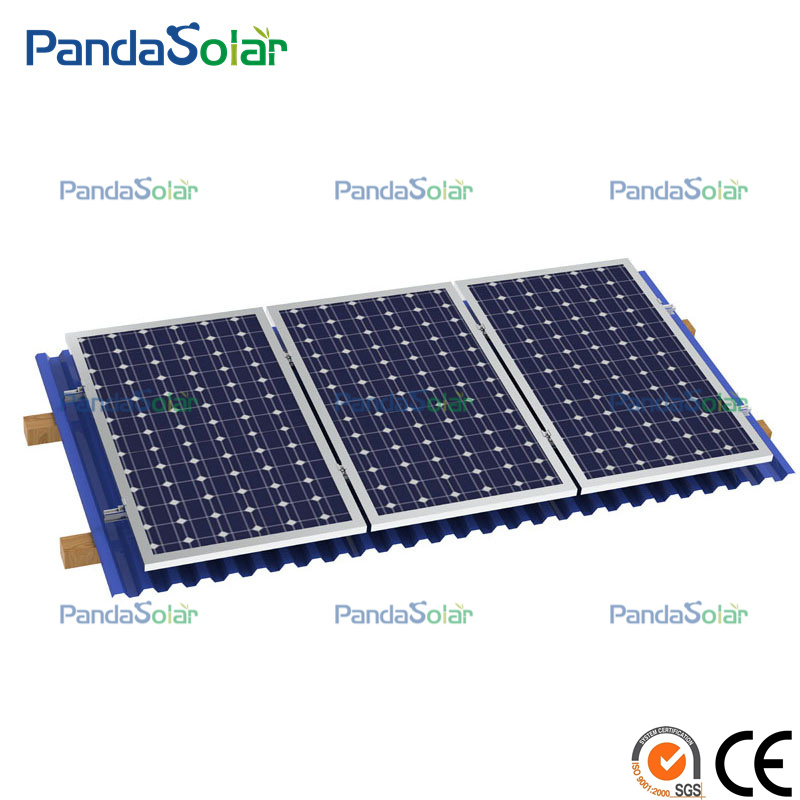

PD-MRS-HB Metal Roof Solar Panel SUS304 Hanger Bolt Structure System

About PandaSolar Hanger bolt solar mounting brackets system:

Metal roof solar mounting systems, Corrugated Roof Solar Mounting System and Tile Roof Stainless Steel Solar Mounting Bracket ，its application structure on three different roofs.

This solar structure is prevalent in Southeast Asia and Europe, and can be used for both residential and commercial installations.

For complete Hanger bolt Solar Mount Racking System the necessary part: solar hanger bolt+L feet, solar aluminum rails, solar rail splice, solar end clamp, solar middle clamp, grounding earth/grounding clip , etc..

This solar mounting kit  advantages:

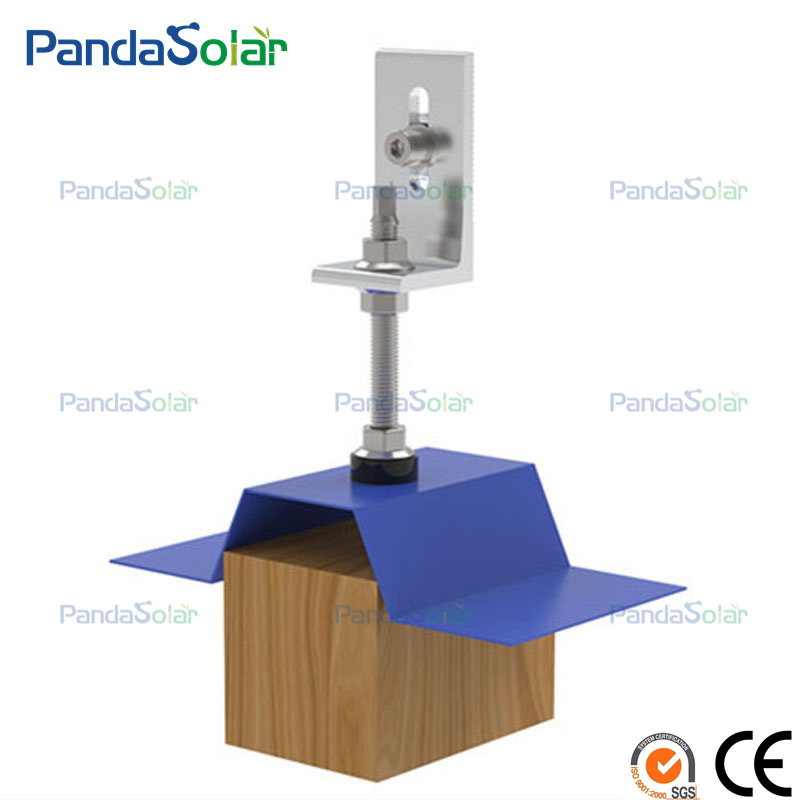

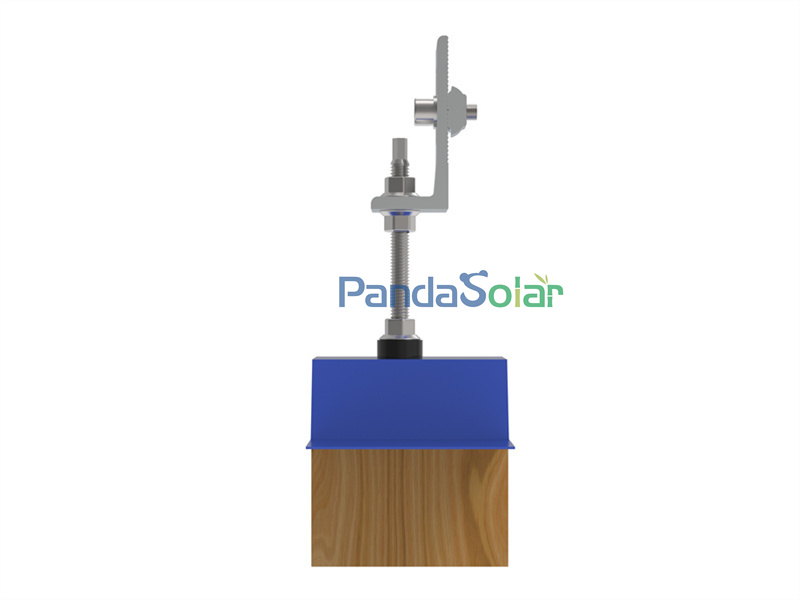

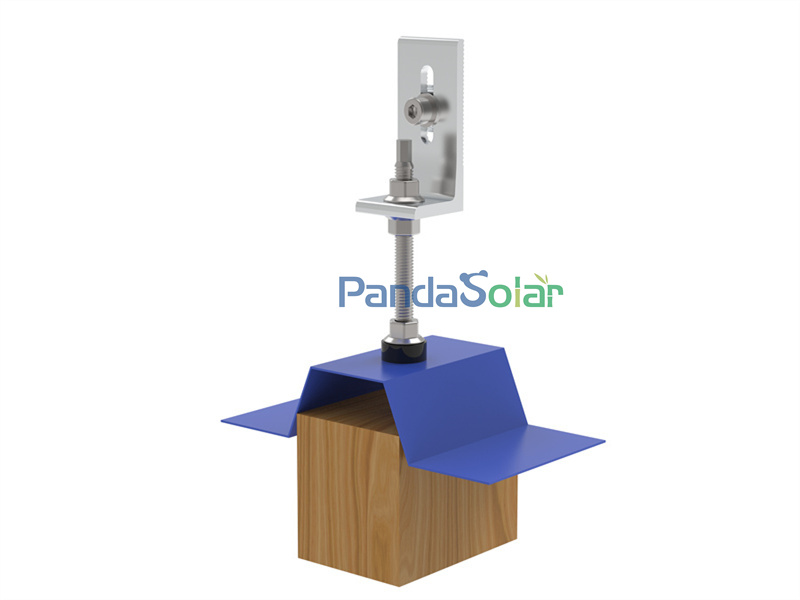

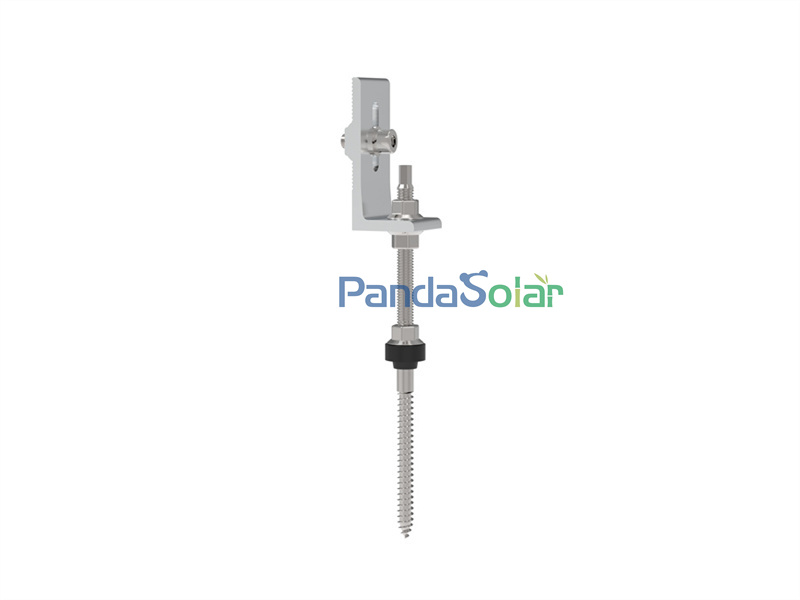

Hanger bolt for solar roof mounting kits which can be used for steel beam and wooden beam. With L feet or stainless steel adapter while fixing the rail. Which perfectly solves the installation of different types of roofs and different types of rails.

Installation Diagram

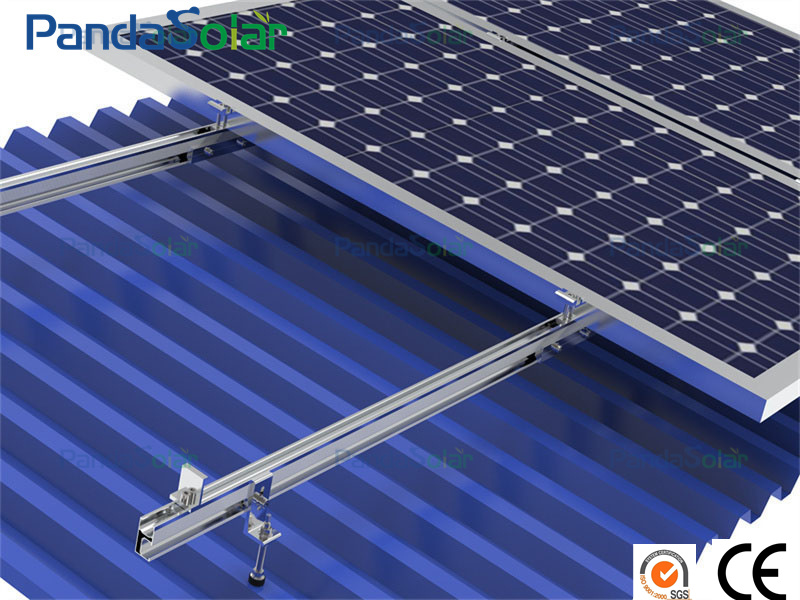

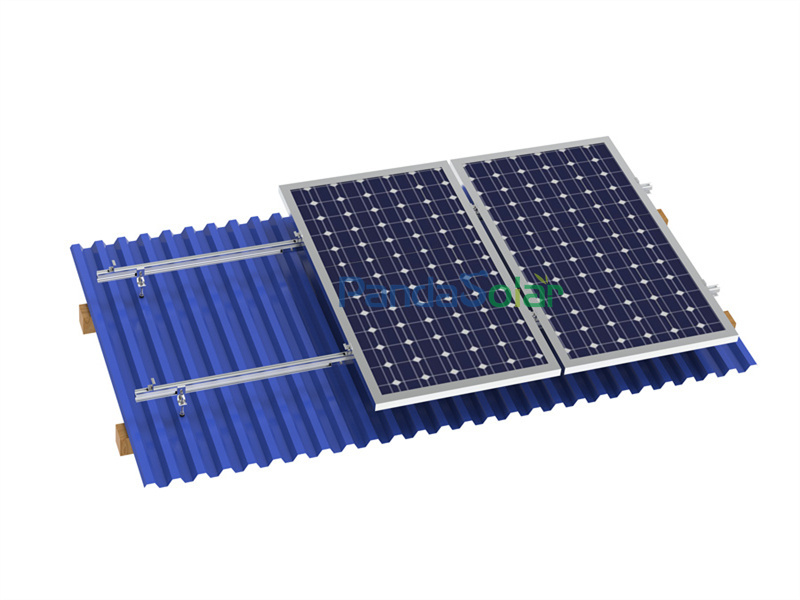

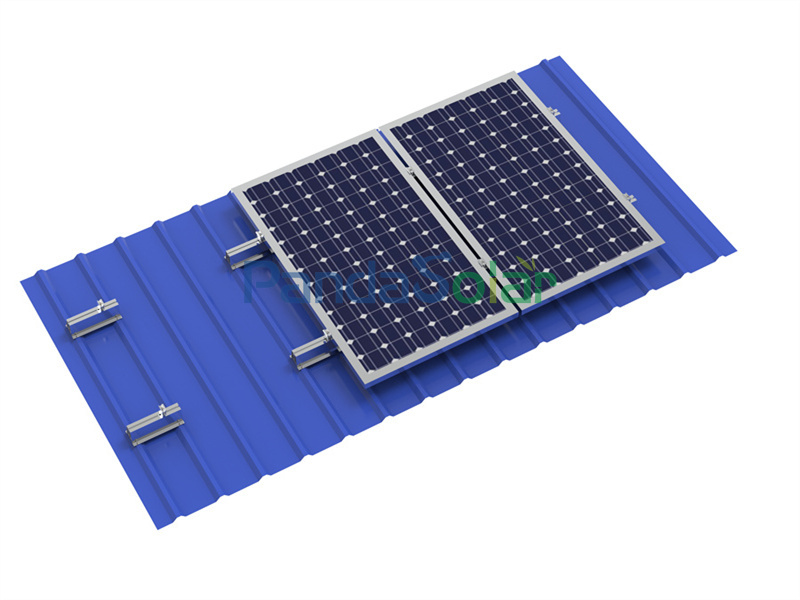

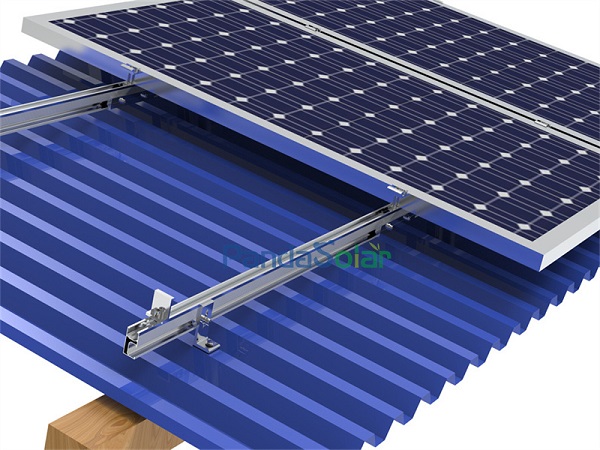

 The Metal Roof Hanger Bolt Mounting Structure

1. First -Fix the solar hanger bolt kits

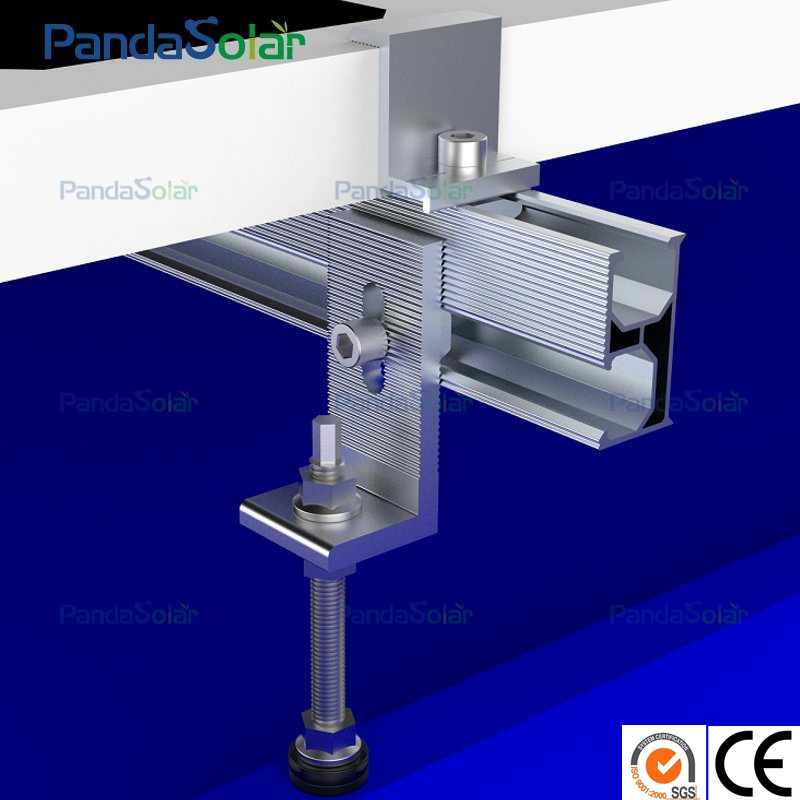

2. The bolts connected to the solar L feet and solar ralis
3. Put the solar panels and fixed with mid clamp end clamp,then finish the install

Workshop-Aluminum Material:
PandaSolar has a professional aluminum alloy product processing workshop,  cutting, drilling, stamping, forging and other work are completed independently.
Professional production team can accept products with high customization/precision requirements.
Workshop-Steel Material:
PandaSolar has a professional steel/Magnesium aluminum zinc/S350GD/S450GD processing workshop as well, 6 production lines, and several molding machines. According to different projects, it can complete cutting and holes processing, with productivity of 40-50MW per month.
