About PandaSolar PD-TRS-02 solar hooks:
It is a universal solar mounting system hook with one adjustment, photovoltaic solar tile hook for roman roof,one adjustable solar tile hook mounting covers the thickness difference of ceramic tiles at different places.
PD-TRS-02 is usually used with R50 rail. It is fixed with matching blocks and bolts. The necessary components are: Solar mid Clamp, Solar end clamp, rail splice.

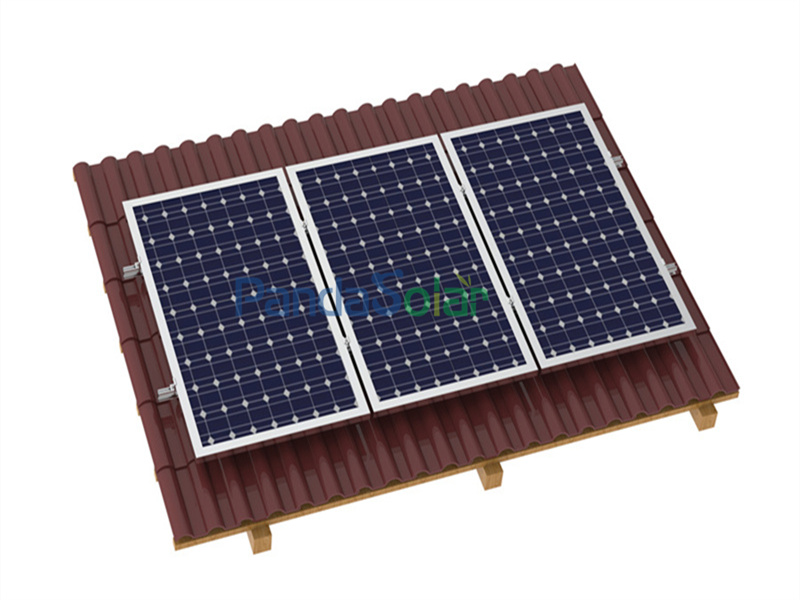

Installation Diagram:

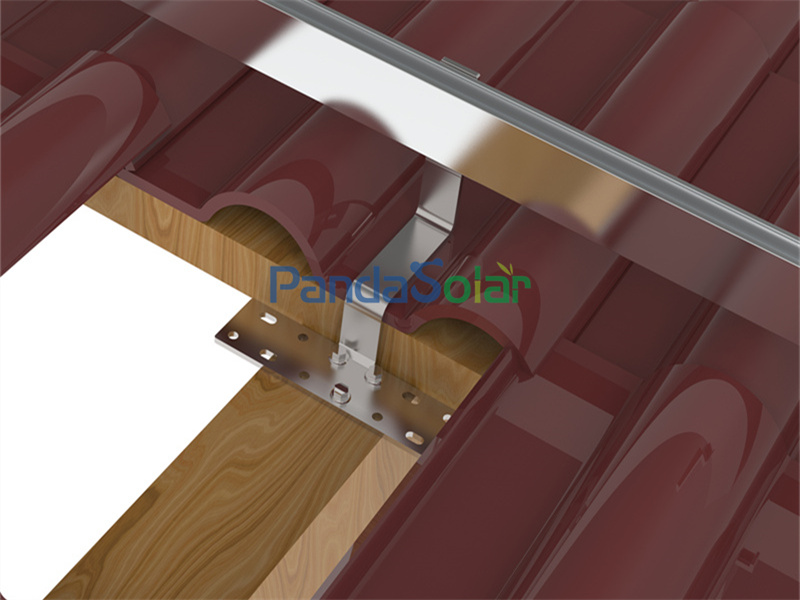

Install the roof hooks: Use roof solar tile hooks to secure the mounting system to the roof. Make sure to attach the fixed solar tile hook to beams for maximum support.
Attach the rails: The mounting system will have rails that attach to the solar tile roof hook. These rails serve as the foundation for the solar panels. Make sure to align them correctly and secure them tightly.
Install the solar panels: Once the rails are securely in place, it's time to install the solar panels. Fix the solar panels on the rail with the mid clamps and end clamps

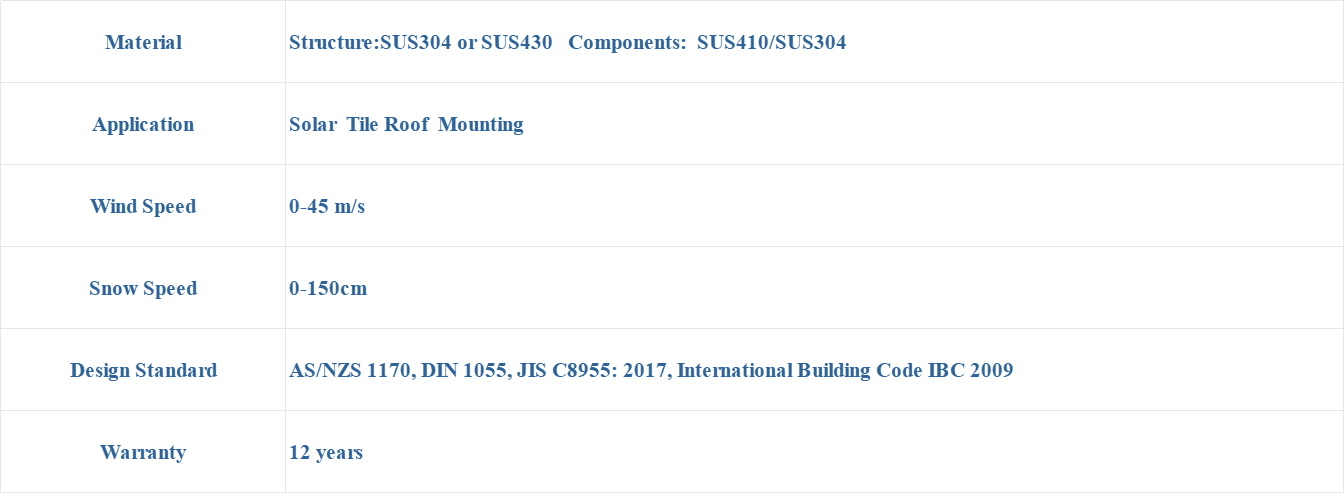

Material
|
Structure:SUS304 or SUS430 Components: SUS410/SUS304
|
Application
|
Solar Tile Roof Mounting
|
Wind Speed
|
0-45 m/s
|
Snow Load
|
0-150cm
|
Design Standard
|
AS/NZS 1170, DIN 1055, JIS C8955: 2017, International Building Code IBC 2009
|
Warranty
|
12 years
|
Our Advantages:
1.Highly pre-assemble
2.Great flexibility in different designs
3.Long service life
4.Accept OEM
5.Factory Price
Certificates
FAQ:
♥: What's your delivery time?
A: 7-15days, for customized product the lead time will be longer, about 25 days, because of making new model. Urgent order is accelerated production.
♥: Can you send the samples?
A: Yes, we provide free samples for your test.
♥: How do you ship the goods and how long does it take to arrive?
A:For sample package, we usually ship by DHL or FedEx. It will take 3-5 days to arrive. For big orders, we usually ship by sea, it will take 7~30 days to arrive, depends on distance.
♥: Are you manufacturer?
A: Yes, we have own factory located in Xiamen China and our production experience is more than 12 years.
♥: Do you have OEM service?
A: Yes, we accept OEM service.
♥: How can I get the best price?
A: Send an inquiry to us and our experts will offer a satisfactory quotation to you according to your requirement.
♥: How about your after-sale?
A:We will be responsible for any complaints from our customers (response immediately when we received it, within 3 hours) and would like to help our customers to solve any problems what they meet.
